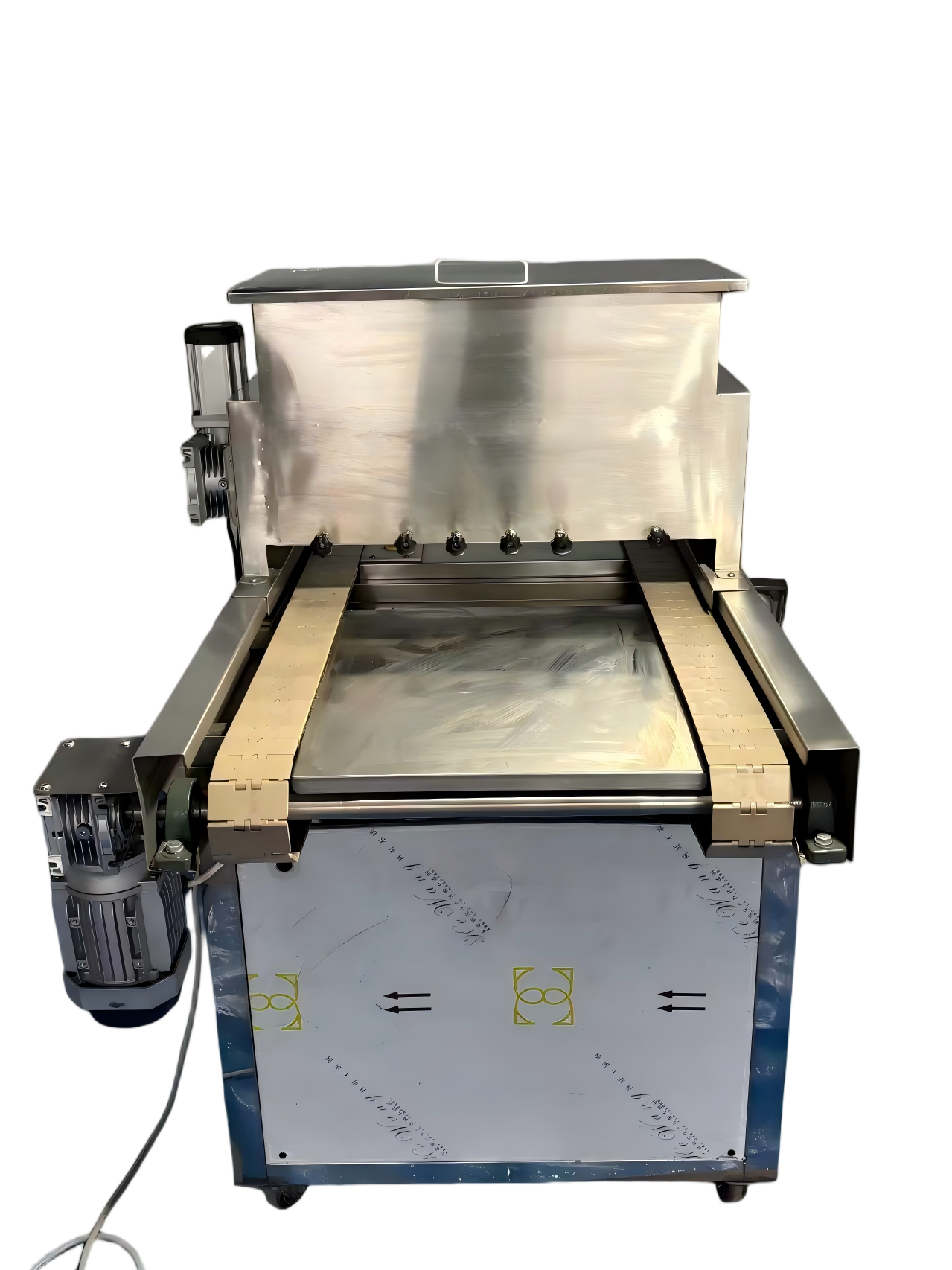

SDV500 - Sprinkling nuts and candy machine, sprinkles and dispense sesame seeds, chocolate chips, raisins, shredded coconut, etc.

1. Application

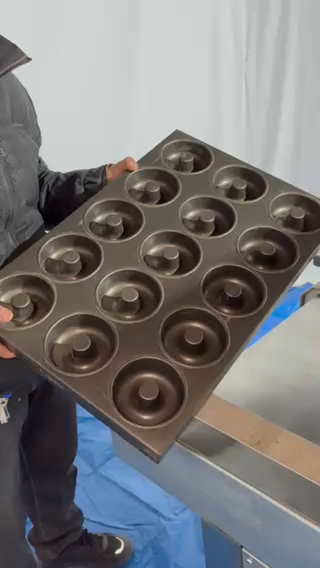

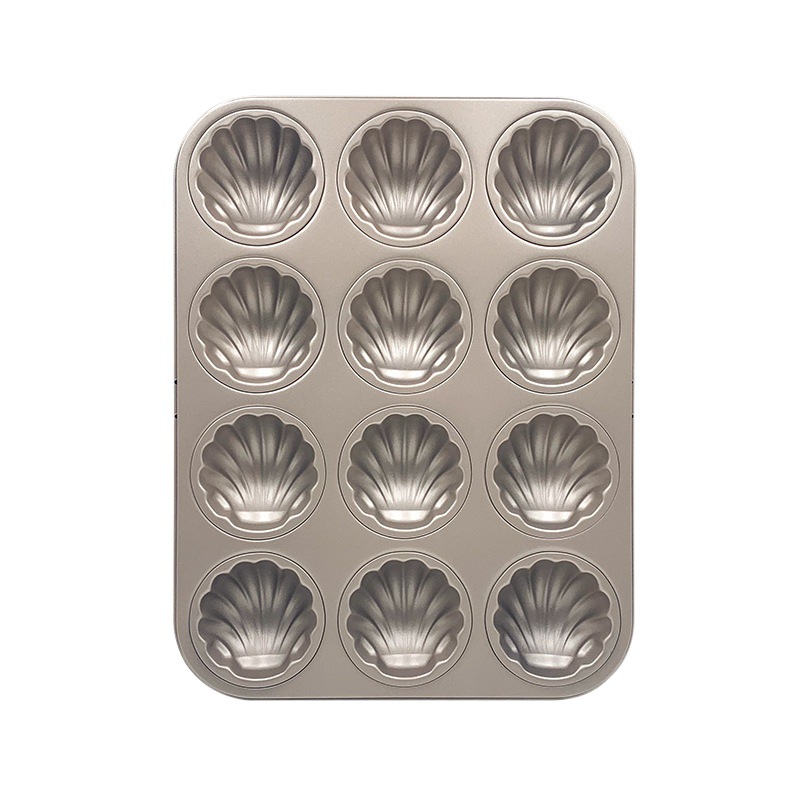

This machine sprinkles and dispenses various fruit pieces, such as sesame seeds, chocolate chips, raisins, candied taro, cranberries, etc., precisely onto the surface of cakes, cookies, bread, dried cakes, and shortbreads, placing them only into the mold recesses, leaving the rest of the baking tray clean.

2. Sprinkling accuracy

The sprinkling amount is adjustable to a precision of 1 gram per cavity of the baking tray, with a minimum dispensing amount of 1 gram and a maximum of 250 grams. The sprinkling speed can be adjusted according to customer needs, and it can also be integrated into a tunnel oven production line for convenience and speed.

3. Machine features

This machine is developed based on food production processes and has undergone more than ten years of market practice and feedback. It uses a servo motor drive, achieving a control precision of up to 1 millimeter, stable conveying speed, and high operational accuracy, making it suitable for production line use.

TECHNICAL SPECIFICATIONS

PARAMETER

Power supply voltage

AC 220V

Dispensing method

Material falls through holes

Dispenser holes quantity

6 holes

Material dispensing

Nuts Candy

Conveying length

1600mm - customizable

Conveying width

720mm - customizable

Power

1.5KW

Spraying speed

3-20 molds /min

Dispensing accuracy

1gram

Size

1500*720*1000mm

Weight

110kg
